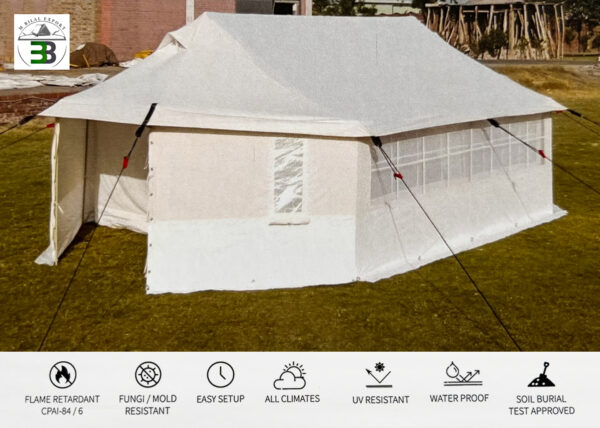

FAMILY TENT (UNHRC/UNICEF/IOM STANDARD)
MAIN MATERIAL
OUTER TENT Roof.approx.380 gsm polyester-cotton fire ,water, rot and UV proof.
Wall: Approx.250 gsm polyester-cotton fire. Water, rot and UV proof.
INNER TENT 160 gsm polyester-cotton fire & rot proof-cream color.
GROUND SHEET Sewn in bathtub ground sheet made of woven PE 180 gsm FR
MUD FLAP Woven PE-180 GSM ICRC/IFRC standard
MOSQUITO NETTING Polyester PVC coated
POLES 1 ridge pipe 4m | 2 upright poles 2;2 m 6 side poles 1,25 cm 4 door poles 1.4 m
PEGS 6 Vpegs (25 x 25 × 3mm )35 cm | 4 candy cane pegs 30 cm | 26 op pegs 23 cm
COLOR Natural white / beige
- Description
- Reviews (0)
Description
DIMENSIONS
| LENGTH × WIDTH OUTER TENT | 660 x 400 cm | FLOOR AREA | 23m2 |
| CENTRAL HEIGHT | 220cm | VESTIBULE | 16m2 |
| DOOR HEIGHT | 140cm | LENGTH X WIDTH INNER TENT | 395×380 cm |
| WALL HEIGHT | 125cm | CENTRAL HEIGTH INNER TENT | 210 cm |
| WEIGHT | 63Kg | INNER SIDE WALL HEIGHT | 115 cm
|
TENT FEATURES
DOORS 2 door outer tent (130 × 140 cm), 1 front and 1 back, 2 door inner tent ( 100 × 175cm ). 1 front and back.
WINDOWS 2 long side windows outer tent (360 × 60 cm), inner tent has two windows of equal size.
VENTILATION 2 ventilation opening, front and back.
CHIMNEY 1 chimney reinforcement in and outer tent.
PACKING AND LOADING
PACKING UNIT (P.U) Tent in PE bag, with seperated webbing bands + handle.
CONTENT P.U Tent, inner tent with ground sheet, poles, accessories and hammer.
QTY P.U 1 piece.
VOLUME PU 0.16 m3
LOADING PER 20 FT DC 170 pcs unpalletized | 150 pcs palletized
PER 40 FT DC 310 pcs unpalletized I 300 pcs palletized
PER 40 FT HC 350 to 380 pcs unpalletized | 300 pcs palletized
